El precio original era: 456,75 €.403,20 €El precio actual es: 403,20 €. + IVA
3 disponibles (puede reservarse)
P/N: TW DN100 DIN 28549 +EB5 1SYD

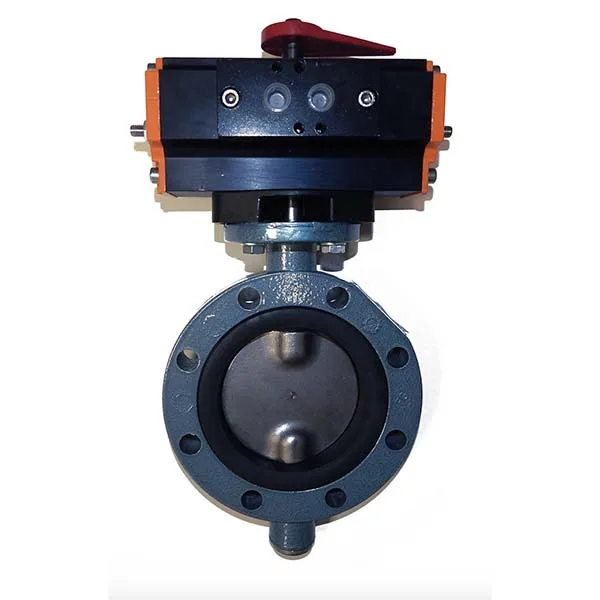

Ebro butterfly valve TW80 datasheet
Nominal diameter: DN 100
Face-to-face: EBRO works standard
Flange accomodation: DIN 28459 flanges for tank lorries
Flange Surface Design: DIN 2526, Form A-E, ANSI RF
Tightness check: DIN 3230 T3 BO, BN (Leakage Rate 1)
ISO 5208, Category 3
API 598 Table 5
ANSI B 16-104, Class VI
Temperature range: –20 °C to + 80 °C (depending on pressure and medium)
Presión operacional: max. 6 bar
Differential pressure: –20 °C to + 80 °C (depending on pressure and medium)
Body: aluminium
Seat: viton
Disc Stainless Steel
EBRO works standard
| Peso | 2 kg |
|---|
